SW-C230 Solar Pile Driver
SW-C series hydraulic solar pile driver is designed for solar power farm projects. The piling length can reach max 4m to 6m to match the needs of photo voltaic installation. Besides, the working platform can be 360 degree rotated for fast operation in solar power farm.
Features:
1.360°rotation
2.Able to be used for pilling 4 meters post at Max, 0.7 meters at Min.
3.Able to adjust the perpendicularity of the guide rail.
Specification:
| Model | SW-C230 |
| Pilling Height | 4 Meters to 6 Meters |
| Impact frequene（bmp） | 600-900 |
| Impact（j） | 1250 |
| Skid Pitch（°） | 120 |
| Boom Swing angle （°） | From Left to right total 40 |
| Swing Angle of Skid（°） | From Left to right total 30 |
| Driving Speed (km/h) | 0-5 |
| Host Power（KW） | 38 |
| Oil Tank Capacity (L) | 100 |
| Climb Ability（°） | 35 |
| Dimensio（L*W*H )(mm） | 4830*2000*2300 |
| Weight（Kg） | 2600 |
| Diesel Engine | 4-cylinder Diesel Engine , 34KW |
| Hydraulic Hammer Weight (kgs) | 230kg |
| Hammer Rating (J) | 600-800 |
| Oil Flow (L/min) | 0-170 |
| Rated Working Pressure(Mpa) | 16Mpa, Max：20Mpa |
| Additional Function | Rock Drilling |

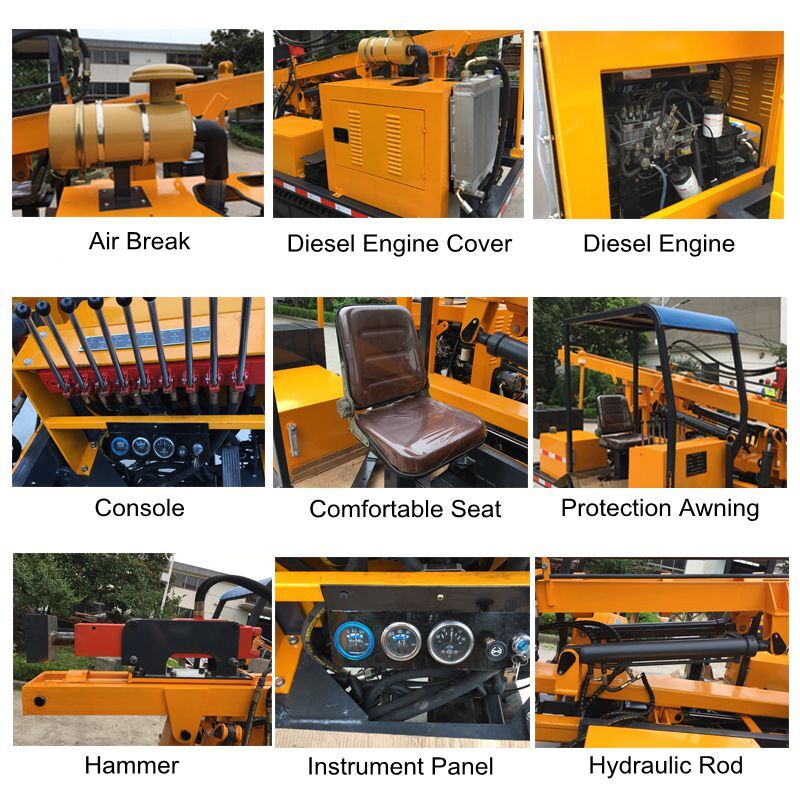

Mainly Parts:
