SW-9 Primer Machine
The primer machine is used for spraying primer to improve the bonding force of the road marking paint and the road surface. It can obviously prevent the marking line from falling off. Concrete pavement and old asphalt surface must be primed with primer on the construction site in advance.
Features of Primer Machine:
1. Easy operation
2. High spray efficiency
Specification:
Dimension | 1350*620*940mm |
Weight | 75kgs |
Engine | Honda 5.5HP petrol engine |
Air compressor | 0.3m3/min |
Pressure | 0.8mpa |
Spraying width | 100-450mm |
Primer Tank Capacity | 50kgs |
Parts of Primer Machine

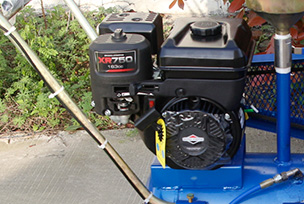

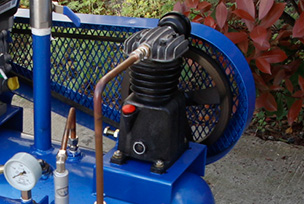

Engine Air Compressor
Engine: Produce the pressure for primer tank Air compressor: Compress air to produce pressure

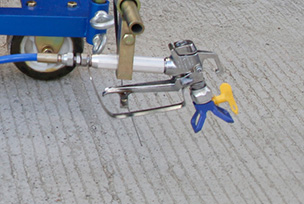

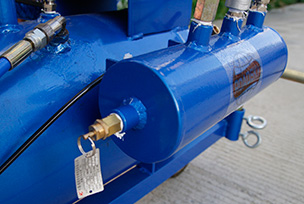

Air Storage Tank Spray Gun
Air storage tank: Store compressed air Spray gun: Spray primer oil to road

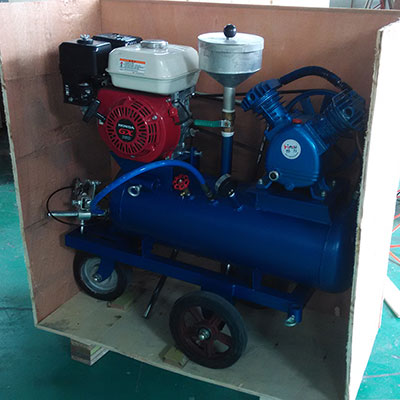

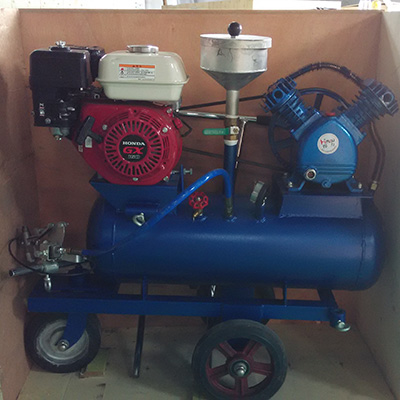

Packing of Primer Machine:

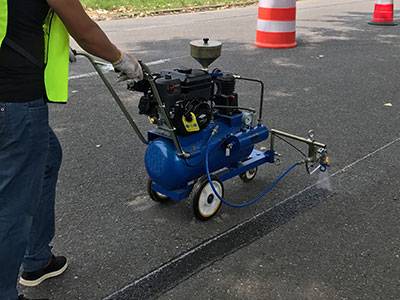

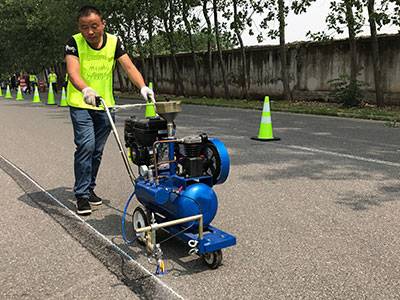

Working On-site:
